13” Trimline Component Packaging Reels LOKREEL®

Component Packaging

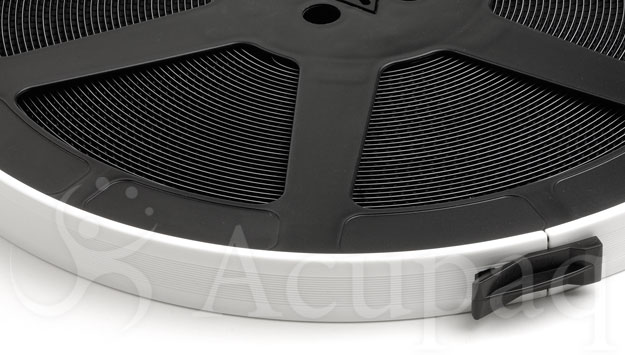

If price is a key concern LOKREEL® Trimline plastic injection-molded packaging reels are a great option. LOKREEL® Trimline packaging reels are constructed using less plastic material per reel, resulting in a lower cost than our premium LOKREEL® Pro series. LOKREEL® Trimline reels offer an excellent balance between structural integrity, lower weight and lower cost.

  • Shipped in halves to decrease shipping costs by up to 70%
  • “Nest-stacked,” high-density packing reduces needed storage space by as much as 60% when compared with a single molded assembled reel
  • Halves configuration offers flexibility in managing the different reel widths needed during production—from 8mm to 32mm
  • Reels assemble with simple twisting motion, requiring no gluing or fasteners

Configuration
LOKREEL® Trimline reels have an outer diameter of 13” (330mm) and a 1/2” (13mm) diameter arbor hole. The hub diameter is 4” (102mm), suitable for most carrier tapes. Reel halves are available in hub widths of 4mm, 8mm, and 16mm, which combine to produce reels for EIA standard carrier tape widths from 8mm to 32mm. The table demonstrates LOKREEL® Trimline half combinations and the reel widths they produce.

Reel Width (mm) LOKREEL® Lite Flange Combinations
8 4 + 4mm
12 4 + 8mm
16 8 + 8mm
24 8 + 16mm
32 16 + 16mm
44 16 + 28mm
56 28 + 28mm

Shelf Life and Storage
We recommend type RD Antistatic LOKREEL® Trimline reels be used within 2 years from the date of manufacture. Store this product in its original packaging in a climate-controlled environment where temperature ranges from 21° C +/- 17°C (70°F +/- 30°F). Allow the product to stabilize at room temperature prior to use. The mechanical integrity of the product is not affected by humidity.

Antistatic LOKREEL® Properties
Note: The values presented for this product are typical laboratory data and may be changed without notice.
* Excessive handling may reduce the static dissipative properties.

Property Typical Value Test Method / Standard
Tensile Strength 3,500 PSI ASTM D-638
Elongation 40% ASTM D-638
Flexural Modulus 280,000 PSI ASTM D-790
Vicat Softening 98°C (210°F) ASTM D-1525
Specific Gravity 1.04 g/cc ASTM D-892
Surface Resistivity (Antistatic) ≤1011 ohms/square ASTM D 257 Static Dissipative per EIA 541
Colour Black N/A



Hub Width 4″ Diameter Hub Qty Per Box
4mm RD33404EL 50
8mm RD33408EL 50
16mm RD33416EL 50
Download PDF spec sheet of this product here
