7″ Mini Component Packaging Reels LOKREEL®

Component Packaging

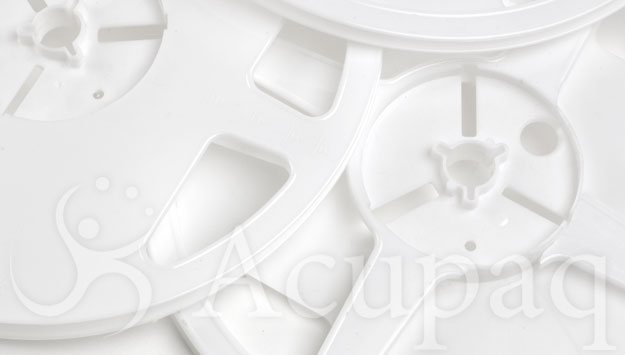

7″ component packaging reels provide excellent protection when shipping small components packaged in carrier tape, such as bare die and small integrated circuit packages. Made from high-impact polystyrene (HIPS) for added strength and durability, our 7” reels are available in a variety of widths, with or without anti-static coatings.

  • Available in 8, 12, 16, 24 and 32 mm widths
  • Reel flange accommodates labels up to 2″ x 4″
  • Available in Standard (RS) or Anti-static coated (RD)
  • Reels may be ordered in white, blue or black

Configuration
LOKREEL® Mini reels have an outside diameter of 7” (178mm) and a 1/2″ (13mm) diameter arbor hole. Reel hubs measure 2” or 2.36” (50mm or 60mm) in diameter and are available in a variety of EIA standard widths from 8 to 32 mm.

Shelf Life and Storage
We recommend that LOKREEL® Mini reels be used within two years from the date of manufacture. Store this product in its original packaging in a climate-controlled environment where temperature ranges from 21° C +/- 17°C (70°F +/- 30°F). Allow the product to stabilize at room temperature prior to use. The mechanical integrity of the product is not affected by humidity.

7″ LOKREEL® Mini Properties
The values presented for this product are typical laboratory data and may be changed without notice.

Property Typical Value Test Method / Standard
Tensile Strength 3,500 PSI ASTM D-638
Elongation 40% ASTM D-638
Flexural Modulus 280,000 PSI ASTM D-790
Vicat Softening 98°C (210°F) ASTM D-1525
Specific Gravity 1.04 g/cc ASTM D-892
Surface Resistivity (Antistatic) ≤1011 ohms/square ASTM D 257 Static Dissipative per EIA 541
Surface Resistivity (Standard) ≤1011 ohms/square ASTM D 257



White Blue Black
8mm RD27608 RD27608-BL RD27608-BK
12mm RD27612 RD27612-BL RD27612-BK
16mm RD27616 RD27616-BL RD27616-BK
24mm RD27624 RD27624-BL RD27624-BK
32mm RD27632 RD27632-BL RD27632-BK
Download PDF spec sheet of this product here
