22″ Jumbo Component Packaging Reels LOKREEL®

Component Packaging

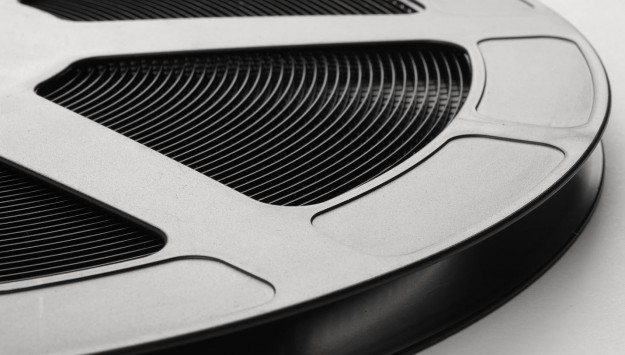

When you need a high volume of components per reel, choose the 22″ LOKREEL® Jumbo. The LOKREEL® Jumbo reel’s all-plastic construction makes it ideal for particle-sensitive environments where paper or cardboard reels are not suitable. The Jumbo reel’s sturdy design and high-impact injection-molded polystyrene construction combine to offer exceptional protection to packaged components.

  • Simple and easy assembly — flange and hub snap together in just seconds
  • As many as six 4″ x 6″ labels can be applied on each flange
  • Available in a variety of hub widths from 16mm to 56mm
  • Reels are anti-static coated for ESD protection

LOKREEL® Jumbo reels have an outer diameter of 22″ (559mm) and come with a 1″ (26mm) diameter arbor hole. The reel hub measures 7″ (178mm) in diameter and is available in EIA standard widths of 16mm, 24mm, 32mm, 44mm and 56mm.

Shelf Life and Storage
We recommend LOKREEL® Jumbo reels be used within two years from the date of manufacture. Store this product in its original packaging in a climate-controlled environment where temperature ranges from 21° C +/- 17°C (70°F +/- 30°F). Allow the product to stabilize at room temperature prior to use. The mechanical integrity of the product is not affected by humidity.

22″ LOKREEL® Jumbo Properties
Note: The values presented for this product are typical laboratory data and may be changed without notice.
* Excessive handling may reduce the static dissipative properties.

Property Typical Value Test Method / Standard
Tensile Strength 3,500 PSI ASTM D-638
Elongation 40% ASTM D-638
Flexural Modulus 280,000 PSI ASTM D-790
Vicat Softening 98°C (185°F) ASTM D-1525
Specific Gravity 1.04 g/cc ASTM D-892
Surface Resistivity (Antistatic) ≤1011 ohms/square ASTM D 257 Static Dissipative per EIA 541
Colour White N/A


Description Part Number Pack Size
16mm Hub 140956 60
22″ Molded plastic flange 1″ arbor hole 140957 16
24mm Hub 140958 40
32mm Hub 140959 32
44mm Hub 140960 24
56mm Hub 140961 20
Download PDF spec sheet of this product here
