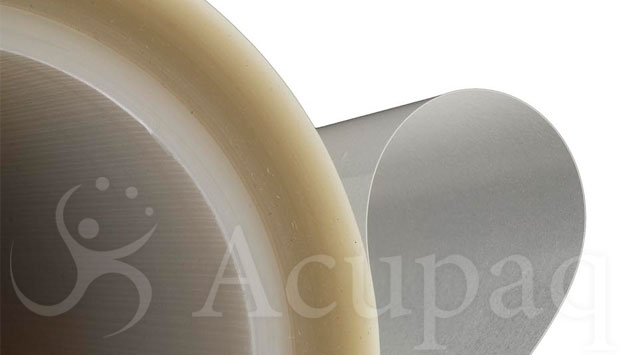

ProFilm™ DX266C, a protective surface film, is designed to ensure consistent, precise and repeatable wafer production yields. Enhanced by superior coating technology, ProFilm™ DX266C delivers Total Thickness Variation (TTV) control, expandable base film and a special low-extractable release liner to significantly reduce silicon residue.
ProFilm™ DX266C is constructed in three layers:
ProFilm™ DX266C is available in a variety of configurations. Standard widths include 200mm, 230mm, 250mm, 275mm, 300mm, 330mm and 400mm. Rolls are 100mm in length, splice-free, and wound on a 3” I.D. plastic core. Both custom widths and lengths may be available by special request. ProFilm™ DX266C rolls are polybag wrapped and individually boxed.
Shelf Life and Storage
ProFilm™ DX266C should be stored in a climate controlled environment where conditions do not exceed 25°C (75°F). If stored as recommended, the product will yield a shelf life of 6 months from the date of manufacture found on the
ProFilm DX266C Material Properties
1 Bond Test on Stainless Steel Wafer at 180° peel angle and 300mm/min peel and stretching speed. The values presented for this product are typical laboratory data and may be changed without notice.
|Property||Typical Value||Test Method / Standard|
|Adhesive Strength||525g/25mm||ASM D 1000|
|Tensile Strength||24 N/mm MD
20 N/mm TD
|ASTM D 882|
|ASTM D 882|
|Thickness w/o Release Liner||267μ (10.5 mils)||ASTM D 1005|
|Temperature Resistance||>5 min. @ 50-55°C||–|
