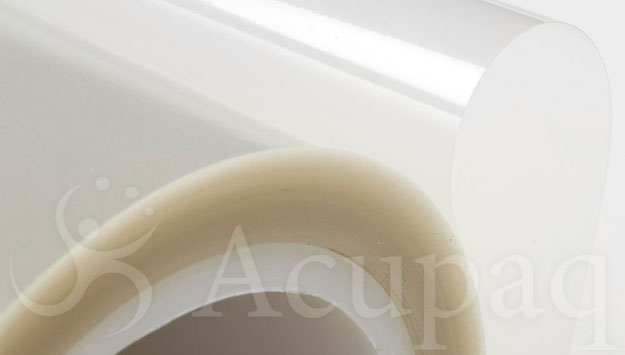

Ultraviolet Dicing Tape ProFilm DU177E

Wafer Dicing Tape

ProFilm™ DU177E is a protective surface film designed to deliver consistent, precise and repeatable wafer production yields. Enhanced with superior ultraviolet adhesive coating technology, ProFilm™ DU177E offers Total Thickness Variation (TTV) control, expandable base film, and a special low extractable release liner that reduces silicon residue by a significant margin.

  • Specially formulated polyolefin film for unparalleled protection
  • Coated with stable UV curable pressure-sensitive adhesive
  • Features expandable chloride-free base film
  • Easy die removal post ultraviolet light exposure
  • Film minimizes or eliminates die rocking and other picking defects
  • Film is transparent and untinted to help human and electronic vision die defect recognition

ProFilm™ DU177E is constructed in three layers:

  • Polyolefin Base Film (6.0Mils)
  • UV Sensitive Adhesive (1.0Mils)
  • Release Film (0.92Mils)

ProFilm™ DU177E is available in a variety of configurations. Standard widths include 200mm, 230mm, 250mm, 275mm, 300mm, 330mm and 400mm. Rolls are provided in splice free lengths of 100m on a 3” I.D. plastic core. Both custom widths and lengths may be available by special request. ProFilm™ DU177E rolls are polybag wrapped and individually boxed.

Shelf Life and Storage
ProFilm™ DU177E should be stored in a climate controlled environment where conditions do not exceed 27°C +/- 10° and 30% RH +/- 20%. This product is sensitive to UV light, so store away from heat and direct sunlight. If stored as recommended, the product will yield a shelf life of 12 months from the date of manufacture found on the core label.

ProFilm DU177E Material Properties

  1. Bond Test on Stainless Steel Wafer at 180° peel angle and 300mm/min peel and stretching speed.
  2. UV exposure of 300 mJ/cm2

The values presented for this product are typical laboratory data and may be changed without notice.

Property Typical Value Test Method / Standard
Adhesive Strength 1 750g/25mm min before UV (20 min.)
20g/25mm after UV2
ASM D 1000
Tensile Strength 13 N/mm2 MD
9 N/mm2 MD
ASTM D 882
Elongation >600% MD
>600% TD
ASTM D 882
Thickness w/o Release Liner 177μ (3.9 mils) ASTM D 1005
Temperature Resistance >5 min. @ 40-45°C
Download PDF spec sheet of this product here
