ProFilm™ DU099D is a protective surface film designed to deliver consistent, precise and repeatable wafer production yields. Enhanced with superior ultraviolet adhesive coating technology, ProFilm™ DU099D offers Total Thickness Variation (TTV) control, expandable base film, and a special low extractable release liner that significantly reduces silicon residue.
Construction
ProFilm™ DU099D is constructed in three layers:
Configurations
ProFilm™ DU099D is available in a variety of configurations. Standard widths include 200mm, 230mm, 250mm, 275mm, 300mm, 330mm and 400mm. Rolls are provided in splice-free lengths of 100m on a 3” I.D. plastic core. Both custom widths and lengths may be available by special request. ProFilm™ DU099D rolls are polybag wrapped and individually boxed.
Shelf Life and Storage
ProFilm™ DU099D should be stored in a climate controlled environment where conditions do not exceed 27°C +/- 10° and 30% RH +/- 20%. This product is sensitive to UV light, so store away from heat and direct sunlight. If stored as recommended, the product will yield a shelf life of 12 months from the date of manufacture found on the core label.
ProFilm DU099D Material Properties
The values presented for this product are typical laboratory data and may be changed without notice.
| Property | Typical Value | Test Method / Standard |
| Adhesive Strength 1 | 570g min before UV (20 min.) 20-100g/25mm after UV2 |
ASM D 1000 |
| Tensile Strength | 15 N/mm2 MD 9 N/mm2 MD |
ASTM D 882 |
| Elongation | >600% MD >600% TD |
ASTM D 882 |
| Thickness w/o Release Liner | 99μ (3.9 mils) | ASTM D 1005 |
| Temperature Resistance | 5 min. @ 40-45°C | – |
For further information on this product please contact us, one of our experienced sales advisors will be in touch shortly.
ProFilm™ DU099H is a protective surface film designed to assure consistent, precise and repeatable wafer production yields enhanced with superior ultraviolet adhesive coating technology, ProFilm™ DU099H features Total Thickness Variation (TTV) control, expandable base film, and a special low-extractable release liner to significantly reduce silicon residue.
Construction
ProFilm™ DU099H is constructed in three layers:
Configurations
ProFilm™ DU099H is available in a variety of configurations. Standard widths include 200mm, 230mm, 250mm, 275mm, 300mm, 330mm and 400mm. Rolls are provided in splice-free lengths of 100m on a 3” I.D. plastic core. Both custom widths and lengths may be available by special request. ProFilm™ DU099H rolls are polybag wrapped and individually boxed.
Shelf Life and Storage
ProFilm™ DU099H should be stored in a climate controlled environment where conditions do not exceed 27°C +/- 10° and 30% RH +/- 20%. This product is sensitive to UV light, so store away from heat and direct sunlight. If stored as recommended, the product will yield a shelf life of 12 months from the date of manufacture found on the core label.
ProFilm DU099H Material Properties
The values presented for this product are typical laboratory data and may be changed without notice. 1UV exposure of 300 mJ/cm2.
| Property | Typical Value | Test Method / Standard |
| Adhesive Strength 1 | 250g min before UV (20 min.) 15g after UV1 |
ASM D 1000 |
| Tensile Strength | 15 N/mm2 MD 9 N/mm2 MD |
ASTM D 882 |
| Elongation | >600% MD >600% TD |
ASTM D 882 |
| Thickness w/o Release Liner | 99μ (3.9 mils) | ASTM D 1005 |
| Temperature Resistance | >5 min. @ 40-45°C | – |
For further information on this product please contact us, one of our experienced sales advisors will be in touch shortly.
ProFilm™ DX266C, a protective surface film, is designed to ensure consistent, precise and repeatable wafer production yields. Enhanced by superior coating technology, ProFilm™ DX266C delivers Total Thickness Variation (TTV) control, expandable base film and a special low-extractable release liner to significantly reduce silicon residue.
Construction
ProFilm™ DX266C is constructed in three layers:
Configurations
ProFilm™ DX266C is available in a variety of configurations. Standard widths include 200mm, 230mm, 250mm, 275mm, 300mm, 330mm and 400mm. Rolls are 100mm in length, splice-free, and wound on a 3” I.D. plastic core. Both custom widths and lengths may be available by special request. ProFilm™ DX266C rolls are polybag wrapped and individually boxed.
Shelf Life and Storage
ProFilm™ DX266C should be stored in a climate controlled environment where conditions do not exceed 25°C (75°F). If stored as recommended, the product will yield a shelf life of 6 months from the date of manufacture found on the
ProFilm DX266C Material Properties
1 Bond Test on Stainless Steel Wafer at 180° peel angle and 300mm/min peel and stretching speed. The values presented for this product are typical laboratory data and may be changed without notice.
| Property | Typical Value | Test Method / Standard |
| Adhesive Strength | 525g/25mm | ASM D 1000 |
| Tensile Strength | 24 N/mm MD 20 N/mm TD |
ASTM D 882 |
| Elongation | >400% MD >400% TD |
ASTM D 882 |
| Thickness w/o Release Liner | 267μ (10.5 mils) | ASTM D 1005 |
| Temperature Resistance | >5 min. @ 50-55°C | – |
For further information on this product please contact us, one of our experienced sales advisors will be in touch shortly.
A protective surface film, ProFilm™ DX112A helps ensure consistent, precise and repeatable wafer production yields through the use of superior coating technology. ProFilm™ DX112A offers Total Thickness Variation (TTV) control, expandable base film and a special low-extractable release liner to significantly reduce silicon residue.
Construction
ProFilm™ DX112A is constructed in three layers:
Configurations
ProFilm™ DX112A is available in a variety of configurations. Standard widths include 200mm, 230mm, 250mm, 275mm, 300mm, 330mm and 400mm. Rolls are provided in splice-free lengths of 100m on a 3” I.D. plastic core. Both custom widths and lengths may be available by special request. ProFilm™ DX112A rolls are polybag wrapped and individually boxed.
Shelf Life and Storage
ProFilm™ DX112A should be stored in a climate controlled environment where conditions do not exceed 25°C (75°F). If stored as recommended, the product will yield a shelf life of 6 months from the date of manufacture found on the core label.
ProFilm™ DX112A Material Properties
The values presented for this product are typical laboratory data and may be changed without notice.
| Property | Typical Value | Test Method / Standard |
| Adhesive Strength 1 | 1000g before UV 30g after UV |
ASM D 1000 |
| Tensile Strength | 19.3 N/mm1 MD 22.0 N/mm1 MD |
ASTM D 882 |
| Elongation | >175% MD >350% TD |
ASTM D 882 |
| Thickness w/o Release Liner | 112.5μ (4.5 mils) | ASTM D 1005 |
| Temperature Resistance | >5 min. @ 40-45°C | – |
For further information on this product please contact us, one of our experienced sales advisors will be in touch shortly.
ProFilm™ DX102F is a protective surface film designed to assure consistent, precise and repeatable wafer production yields. Utilising superior coating technology, ProFilm™ DX102F offers Total Thickness Variation (TTV) control, expandable base film and a special low extractable release liner to significantly reduce silicon residue.
Construction
ProFilm™ DX102F is constructed in three layers:
Configurations
DX102F is available in a variety of configurations. Standard widths include 200mm, 230mm, 250mm, 275mm, 300mm, 330mm and 400mm. Rolls are provided in splice-free lengths of 100m on a 3” I.D. plastic core. Both custom widths and lengths may be available by special request. ProFilm™ DX102F rolls are polybag wrapped and individually boxed.
Shelf Life and Storage
ProFilm™ DX102F should be stored in a climate controlled environment where conditions do not exceed 25°C (75°F). If stored as recommended, the product will yield a shelf life of 12 months from the date of manufacture found on the core label.
ProFilm DX102F Material Properties
1 Bond Test on Stainless Steel Wafer at 180° peel angle and 300mm/min peel and stretching speed.
The values presented for this product are typical laboratory data and may be changed without notice.
| Property | Typical Value | Test Method / Standard |
| Adhesive Strength 1 | 150g/25mm | ASM D 1000 |
| Tensile Strength | 15 N/mm1 MD 9 N/mm1 MD |
ASTM D 882 |
| Elongation | >600% MD >600% TD |
ASTM D 882 |
| Thickness w/o Release Liner | 100μ (4.0 mils) | ASTM D 1005 |
| Temperature Resistance | >5 min. @ 40-45°C | – |
For further information on this product please contact us, one of our experienced sales advisors will be in touch shortly.
Working with our chosen partner, we have more than 20 years experience in providing ESD protective electronics packaging. Thermoforming is efficient and very cost-effective for the production of many plastic parts depending on their size, shape, and quantity. Initial project costs are usually much lower, and lead times to tooling and production are generally much shorter than other processes. Temporary tooling offers an inexpensive short-term test for design issues and product market acceptance.
Custom thermoformed plastic packaging provides a more cost effective solution to protecting sensitive electronic components in computer parts, chips, hard drives and even mobile phones. Utilising our extensive knowledge of the inherent dangers of transportation of such components, Acupaq can work with you to develop custom, precision parts best suited for your projects requirements.
Our technology allows us to cover even-wall, deep draw, nestable plastic containers and automation trays for the following industries:
For further information on this product please contact us, one of our experienced sales advisors will be in touch shortly.
Component Packaging

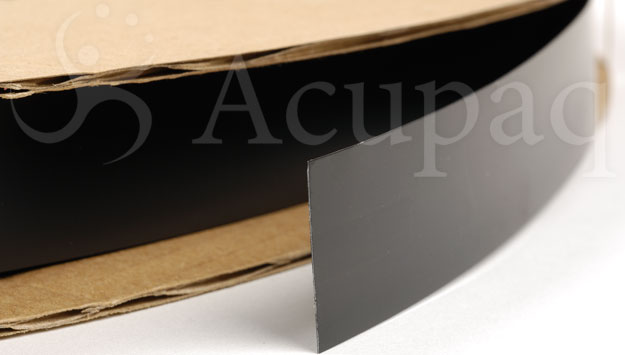

ProBand™ is a protective band made of carbon-loaded polystyrene designed to be wound around the diameter of standard size shipping reels of loaded carrier tape. The band covers the outermost wrap of carrier tape to provide added protection for packaged components. The bands are slightly wider than the carrier tape, preventing the flanges from crushing together during dry-pack or handling to protect packaged components from impact damages. Available in lengths to fit standard size shipping reels.
Shelf Life and Storage
We recommend that PROBAND™ be used within 5 years from the date of manufacture. Store this product in its original packaging in a climate-controlled environment where temperature ranges from 21°C +/- 17°C (70°F +/- 30°F). Allow the product to stabilize at room temperature prior to use. The mechanical integrity of the product is not affected by humidity.
PROBAND™ Material Properties
(The values presented for this product are typical laboratory data and may be changed without notice.)
| Property | Typical Value | Test Method / Standard |
| Surface Resistivity | <1012 ≥105 ohms/square | ASTM D-257 |
| Tensile Strength | 3700 PSI | ASTM D-882 |
| Elongation | 40% | ASTM D-882 |
| Specific Gravity | 1.06g/cc | ASTM D-792 |
| Shelf Life | 5 years | N/A |
| Colour | Black | N/A |
Configurations
ProBand™ is available in various lengths to navigate the circumference of standard diameter reels. The width of the ProBand™ depends upon the width of the carrier tape used. The following table shows ProBand™ part numbers with width and thickness for standard carrier width of between 8mm to 88mm. Custom width and thickness is available upon request.
| Part Number | Width (+0.7/-0/0) | Length (+/-0.03m)* | Thickness (+/-0.1mm) |
| PBXXX08UC | 8.3mm | XXX | 1.0mm |
| PB050XXX08 | 8.3mm | XXX | 0.5mm |
| PBXXX12UC | 12.3mm | XXX | 1.0mm |
| PB050XXX12 | 12.3mm | XXX | 0.5mm |
| PBXXX16UC | 16.3mm | XXX | 1.0mm |
| PB050XXX16 | 16.3mm | XXX | 0.5mm |
| PBXXX24UC | 24.3mm | XXX | 1.0mm |
| PB050XXX24 | 24.3mm | XXX | 0.5mm |
| PBXXX32UC | 32.3mm | XXX | 1.0mm |
| PB050XXX32 | 32.3mm | XXX | 0.5mm |
| PBXXX44UC | 44.3mm | XXX | 1.0mm |
| PB050XXX44 | 44.3mm | XXX | 0.5mm |
| PBXXX56UC | 53.6mm | XXX | 1.0mm |
| PB050XXX56 | 53.6mm | XXX | 0.5mm |
| PBXXX72UC | 72.3mm | XXX | 1.0mm |
| PBXXX88UC | 88.3mm | XXX | 1.0mm |
* XXX=060=0.60m | XXX=109=1.09m | XXX=117=1.17m | XXX=143=1.43m
For further information on this product please contact us, one of our experienced sales advisors will be in touch shortly.
These HICs are designed with a single colour changing spot for use in desiccant containers. The spot will change colour to indicate whether the desiccant has been activated or not.
Features:
| Product Code | Size (inch) | Pack Size |
| ANT26507-1 | 3.25 x 3.25 | 625 |
| ANT26507-1S | 1.5 x 2.0 | 250 |
For further information on this product please contact us, one of our experienced sales advisors will be in touch shortly.

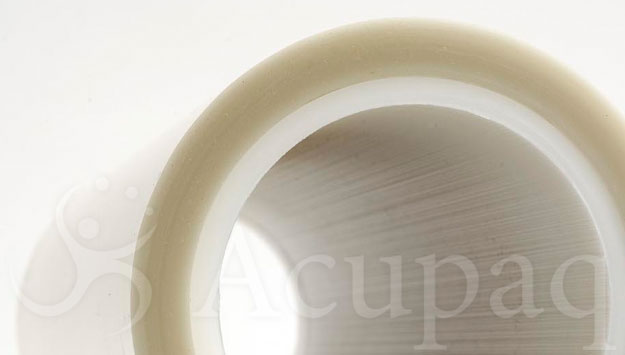

ProFilm™ DU310J dicing tape has a protective surface film designed to assure consistent, precise and repeatable wafer production yields. Constructed with superior ultraviolet adhesive coating technology, ProFilm™ DU310J tape features Total Thickness Variation (TTV) control, expandable base film, and a special low-extractable release liner to significantly reduce silicon residue.
Dicing Tape ProFilm DU0310J Features:
Construction
ProFilm™ DU0310J Dicing Tape is constructed in three layers:
Configurations
Dicing Tape ProFilm™ DU310J is available in a variety of configurations. Standard widths include 200mm, 230mm, 250mm, 275mm, 300mm and 400mm. Rolls are provided in splice-free lengths of 100m on a 3” I.D. plastic core. Both custom widths and lengths may be available by special request. Dicing Tape ProFilm™ DU310J rolls are polybag wrapped and individually boxed.
Shelf Life and Storage
ProFilm™ DU310J dicing tape should be stored in a climate controlled environment where conditions do not exceed 27°C +/- 10° and 30% RH +/- 20%. This product is sensitive to UV light, so store away from heat and direct sunlight. If stored as recommended, the product will yield a shelf life of 12 months from the date of manufacture found on the core label.
Dicing Tape ProFilm DU310J Material Properties
The values presented for this product are typical laboratory data and may be changed without notice.
For further information on this product please contact us, one of our experienced sales advisors will be in touch shortly.
swiftTape is Acupaq’s own brand carrier tape, predominantly for low volume, quick turnaround requirements. swiftTape utilises a proprietary process that creates the capability to produce over 1.4 million pocket sizes without the need for tooling. With rapid set up times, your swiftTape could be leaving our facility within 24 hours.
swiftTape is capable of producing any pocket size from 4mm x 4mm to 46mm x 46mm on 12mm to 56mm wide carrier tape. Pocket depths of 2mm to 5.6mm (in increments of 0.4mm) are available. Due to the nature of this process, swiftTape is available in 3 service levels:
Platinum – Ready to ship orders up to 10,000 pockets within 3 days
Gold – Ready to ship orders up to 10,000 pockets within 5 days
Silver – Ready to ship orders up to 10,000 pockets within 10 days
swiftTape is constantly evolving with greater capability that is extending the range of pocket sizes and designs that can be produced.
swiftTape Material Properties
The values presented for this product are typical laboratory data and may be changed without notice.
Ordering Information
While our online ordering facility is in it’s final phase of implementation, please contact your Acupaq representative or e-mail info@acupaq.com in order to enter your order. We will need pocket dimensions, quantity and whether a 22” or 13” reel is required. Acupaq will then send you a proof drawing. When you are happy with the proof drawing, we ask you to sign and return. Your order will be ready to ship within a maximum of 10 working days from receipt of the signed proof and an official purchase order (a slight delay may be applicable if a new account is required).
Acupaq is also making the equipment available for purchase by those wishing to produce their own tapes. If this is of interest, please contact info@acupaq.com and we shall respond immediately to your enquiry.
